(SDB) Component Description

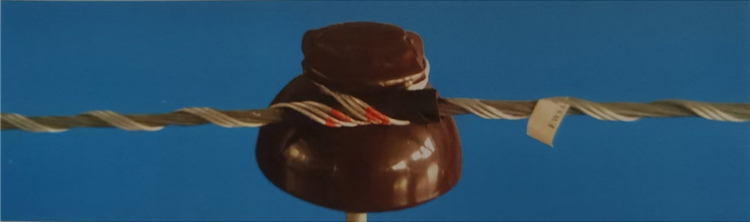

Insulator Top Binding Wire
Preformed Helix (â‘ ): Secures the conductor and ground wire.
Sleeve (â‘¡): Protects the conductor and ground wire. During installation, the sleeve should first be sleeved onto the conductor.
Identification Tape (â‘¢): Indicates the product number and nominal dimensions.
Color Code (â‘£): Used to distinguish the applicable conductor diameter range.

Purpose
The distribution binding wire, made of aluminum - clad steel, is used to fix the conductor in the top groove of a pin - type insulator. Compared with top - clamp insulators or manual binding wires, the distribution binding wire provides a better fixing effect for the conductor.

Send Inquiry

Product Description

Selection Table for Preformed Insulator Top Binding Wires (Series G01-1)

Product Model	Applicable Conductor Diameter Range (mm)	Product Parameter Description		Applicable International Conductors
Product Model	Applicable Conductor Diameter Range (mm)	Color Code	Pieces per Set	L.J	Common Insulation 10KV	Thin Insulation 10KV
DB - 0600	4.83 – 5.46	Blue	2	16		10
DB - 0601	5.47 – 6.20	Brown	2			16
DB - 0602	6.21 – 7.04	Orange	2	25
DB - 0603	7.05 – 8.00	Purple	2	35
DB - 0604	8.01 – 9.07	Red	2	50
DB - 0605	9.08 – 10.29	Yellow	2
DB - 0606	10.3 – 11.66	Blue	2	70
DB - 0607	11.67 – 13.21	Orange	2	95	10, 16
DB - 0608	13.22 – 14.94	Red	2	120		25
DB - 0609	14.95 – 16.89	Purple	2	150	25, 35	35, 50
DB - 0610	16.9 – 19.18	Brown	2	185, 210	50	70
DB - 0611	19.2 – 21.79	Red	2	240	70, 95	95, 120
DB - 0612	21.82 – 24.59	Blue	2	300	120, 150	150, 185
DB - 0613	24.61 – 27.84	Green	2	400	185	240

💡 Note: Suitable for right-hand lay bare conductors and insulated conductors.

Selection Table for Insulator Top Binding Wires (Series G01-2)

Product Model	Applicable Conductor Diameter Range (mm)	Product Parameter Description		Applicable International Conductors
Product Model	Applicable Conductor Diameter Range (mm)	Color Code	Pieces per Set	L.J	Common Insulation 10KV	Thin Insulation 10KV
SDB-1000	4.83 – 5.46	Blue	2	16		10
SDB-1001	5.47 – 6.20	Brown	2			16
SDB-1002	6.21 – 7.04	Orange	2	25
SDB-1003	7.05 – 8.00	Purple	2	35
SDB-1004	8.01 – 9.07	Red	2	50
SDB-1005	9.08 – 10.29	Yellow	2
SDB-1006	10.3 – 11.66	Blue	2	70
SDB-1007	11.67 – 13.21	Orange	2	95	10, 16
SDB-1008	13.22 – 14.94	Red	2	120		25
SDB-1009	14.95 – 16.89	Purple	2	150	25, 35	35, 50
SDB-1010	16.9 – 19.18	Brown	2	185, 210	50	70
SDB-1011	19.2 – 21.79	Red	2	240	70, 95	95, 120
SDB-1012	21.82 – 24.59	Blue	2	300	120, 150	150, 185
SDB-1013	24.61 – 27.84	Green	2	400	185	240

💡 Note: Suitable for right-hand lay bare conductors and insulated conductors.

Selection Table for Preformed Insulator Top Binding Wire (Series G01-3)

Product Model	Applicable Conductor Diameter Range (mm)		Product Parameter Description		Applicable International Conductors
Product Model	Lower Limit	Upper Limit	Color Code	Pieces per Set	LJ (Bare Conductor)	Common Insulation 10KV	Thin Insulation 10KV
SDB-1500	4.83	5.46	Blue	2	16		10
SDB-1501	5.47	6.2	Brown	2			16
SDB-1502	6.21	7.04	Orange	2	25
SDB-1503	7.05	8	Purple	2	35
SDB-1504	8.01	9.07	Red	2	50
SDB-1505	9.08	10.29	Yellow	2
SDB-1506	10.3	11.66	Blue	2	70
SDB-1507	11.67	13.21	Orange	2	95	10, 16
SDB-1508	13.22	14.94	Red	2	120		25
SDB-1509	14.95	16.89	Purple	2	150	25, 35	35, 50
SDB-1510	16.9	19.18	Brown	2	185, 210	50	70
SDB-1511	19.2	21.79	Red	2	240	70, 95	95, 120
SDB-1512	21.82	24.59	Blue	2	300	120, 150	150, 185
SDB-1513	24.61	27.84	Green	2	400	185	240

💡 Note: Applicable to right-hand twisted bare conductors and insulated conductors.

Frequently Asked Questions (FAQ)

How do I choose the correct binding wire model?

Selection is based on the applicable conductor diameter range (mm). Match your conductor's measured diameter with the range specified in the selection tables.

What is the purpose of the color code?

The color code is used for quick identification of the product model and its corresponding conductor diameter range during installation.

Are these binding wires compatible with insulated conductors?

Yes, these products are suitable for both right-hand lay bare conductors and insulated conductors (including common and thin 10KV insulation).

How many pieces are included in one set?

According to the product specifications, each set typically contains 2 pieces for proper installation.

Does the lay direction of the conductor matter?

Yes, these specific models are designed to be used with right-hand lay or right-hand twisted conductors.

What international conductor types are covered?

The selection tables include compatibility for LJ bare conductors, 10KV common insulation conductors, and 10KV thin insulation conductors across various cross-sections.
