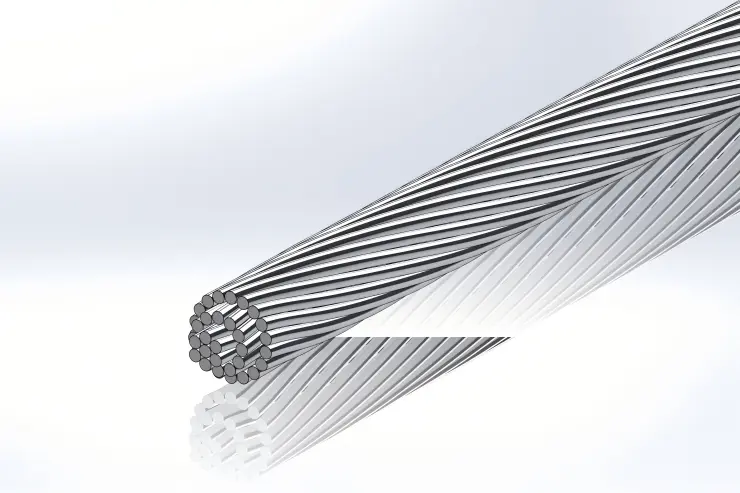

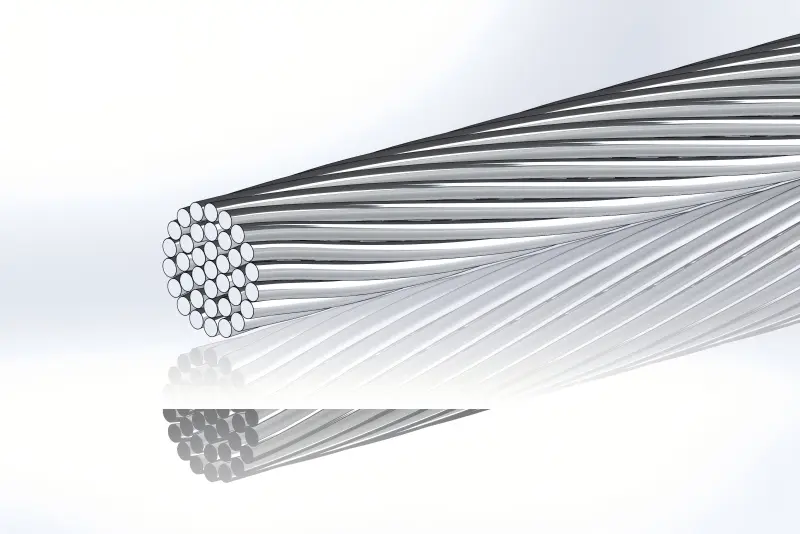

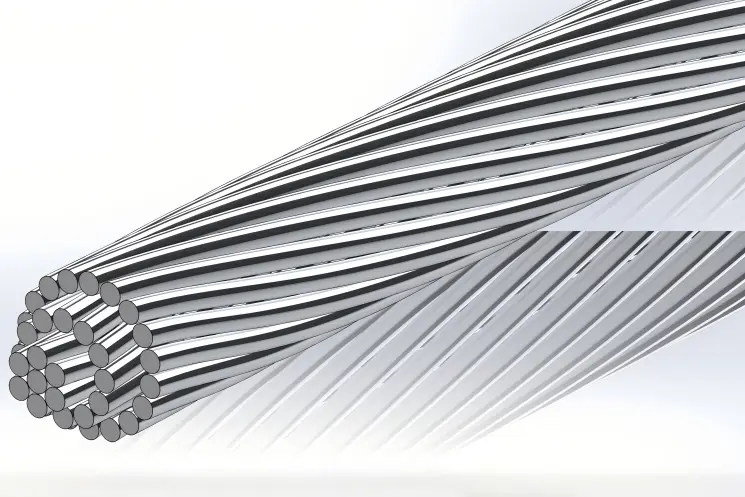

| Conductor Size | Sectional Area | Diameter of Wires | 1350 Aluminum | 6201 Aluminum alloy | Diameter of Conductor | Linear Mass | Rated Strength | Max.D.C. Resistance at 20℃ (Ω/km) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Total | 1350 Al | 6201 Al-alloy | ||||||||
| cmil | mm² | mm² | mm² | mm | No | No | mm | kg/km | kN | Ohms/km |
| Stranding 4/3 | ||||||||||
| 30 580 | 15.5 | 8.9 | 6.6 | 1.679 | 4 | 3 | 5.04 | 42.4 | 3.67 | 1.98 |
| 41 740 | 21.1 | 12.1 | 9.1 | 1.961 | 4 | 3 | 5.88 | 57.9 | 4.97 | 1.45 |
| 48 690 | 24.7 | 14.1 | 10.6 | 2.118 | 4 | 3 | 6.35 | 67.5 | 5.76 | 1.24 |
| 66 360 | 33.7 | 19.2 | 14.4 | 2.474 | 4 | 3 | 7.42 | 92.1 | 7.79 | 0.909 |
| 77 470 | 39.3 | 22.4 | 16.8 | 2.672 | 4 | 3 | 8.02 | 107.5 | 8.94 | 0.778 |
| 105 600 | 53.5 | 30.6 | 22.9 | 3.119 | 4 | 3 | 9.36 | 146.5 | 12 | 0.571 |
| 123 300 | 62.5 | 35.7 | 26.8 | 3.371 | 4 | 3 | 10.11 | 171.1 | 13.65 | 0.489 |
| 133 100 | 67.5 | 38.6 | 28.9 | 3.503 | 4 | 3 | 10.51 | 184.7 | 14.7 | 0.453 |
| 155 400 | 78.8 | 45.0 | 33.8 | 3.785 | 4 | 3 | 11.36 | 215.7 | 17.1 | 0.387 |
| 167 800 | 85.0 | 48.6 | 36.4 | 3.932 | 4 | 3 | 11.80 | 232.8 | 18.3 | 0.361 |
| 195 700 | 99.2 | 56.7 | 42.5 | 4.247 | 4 | 3 | 12.74 | 271.6 | 21.3 | 0.309 |
| 211 600 | 107.3 | 61.3 | 46.0 | 4.417 | 4 | 3 | 13.25 | 293.7 | 23 | 0.285 |
| 246 900 | 125.1 | 71.5 | 53.6 | 4.770 | 4 | 3 | 14.31 | 342.6 | 26.9 | 0.245 |
| Stranding 12/7 | ||||||||||
| 250 000 | 126.6 | 80.0 | 46.7 | 2.913 | 12 | 7 | 14.57 | 348.4 | 27.6 | 0.24 |
| 300 000 | 152.1 | 96.1 | 56.1 | 3.193 | 12 | 7 | 15.97 | 418.6 | 32.8 | 0.199 |
| 400 000 | 202.6 | 128.0 | 74.7 | 3.685 | 12 | 7 | 18.43 | 557.6 | 42.4 | 0.15 |
| 500 000 | 253.3 | 160.0 | 93.3 | 4.12 | 12 | 7 | 20.60 | 697.0 | 52.4 | 0.12 |
| 600 000 | 303.9 | 192.0 | 112.0 | 4.513 | 12 | 7 | 22.57 | 836.3 | 62.9 | 0.0997 |
| Stranding 15/4 | ||||||||||
| 250 000 | 126.6 | 100.0 | 26.7 | 2.913 | 15 | 4 | 14.57 | 348.4 | 24.4 | 0.234 |
| 400 000 | 202.6 | 160.0 | 42.7 | 3.685 | 15 | 4 | 18.43 | 557.6 | 37.5 | 0.146 |
| 500 000 | 253.3 | 200.0 | 53.3 | 4.12 | 15 | 4 | 20.60 | 697.0 | 46.2 | 0.117 |
| 600 000 | 303.9 | 239.9 | 64.0 | 4.513 | 15 | 4 | 22.57 | 836.3 | 55.4 | 0.0974 |
| Stranding 18/19 | ||||||||||
| 500 000 | 253.1 | 123.1 | 130.0 | 2.951 | 18 | 19 | 20.66 | 698.0 | 58.8 | 0.122 |
| 750 000 | 380.2 | 185.0 | 195.2 | 3.617 | 18 | 19 | 25.32 | 1048.6 | 84.7 | 0.0817 |
| 1 000 000 | 506.8 | 246.5 | 260.2 | 4.176 | 18 | 19 | 29.23 | 1397.8 | 112 | 0.0610 |
| 1 250 000 | 633.5 | 308.2 | 325.3 | 4.669 | 18 | 19 | 32.68 | 1747.3 | 140 | 0.0489 |
| Stranding 24/13 | ||||||||||
| 500 000 | 253.1 | 164.1 | 88.9 | 2.951 | 24 | 13 | 20.66 | 698.0 | 52.9 | 0.119 |
| 1 000 000 | 506.8 | 328.7 | 178.1 | 4.176 | 24 | 13 | 29.23 | 1397.8 | 101 | 0.0597 |
| 1 300 000 | 658.4 | 427.1 | 231.3 | 4.760 | 24 | 13 | 33.32 | 1816.0 | 131 | 0.0459 |
| Stranding 30/7 | ||||||||||
| 500 000 | 253.1 | 205.2 | 47.9 | 2.951 | 30 | 7 | 20.66 | 698.0 | 48.0 | 0.117 |
| 1 000 000 | 506.8 | 410.9 | 95.9 | 4.176 | 30 | 7 | 29.23 | 1397.8 | 91.0 | 0.0584 |
| 1 300 000 | 658.4 | 533.9 | 124.6 | 4.760 | 30 | 7 | 33.32 | 1816.0 | 118 | 0.0449 |
