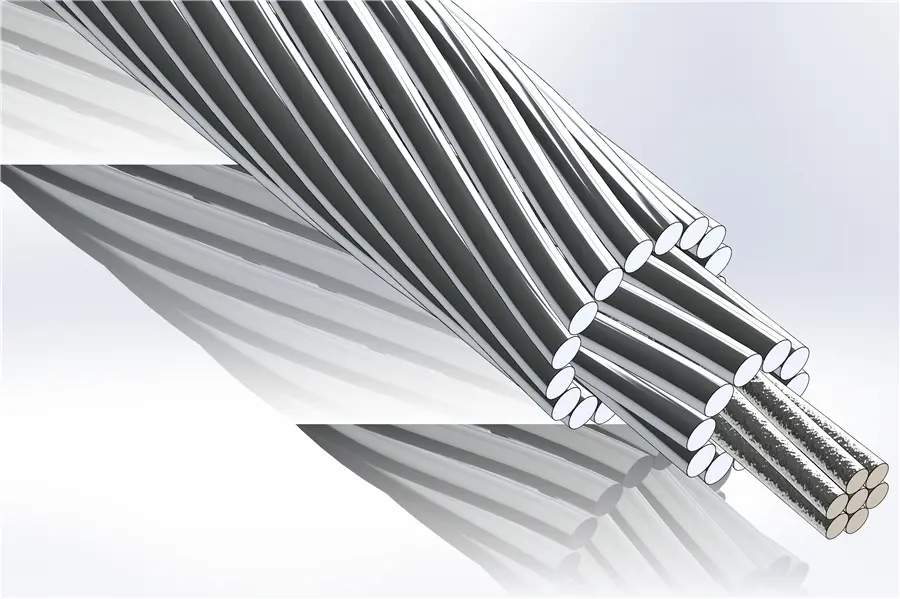

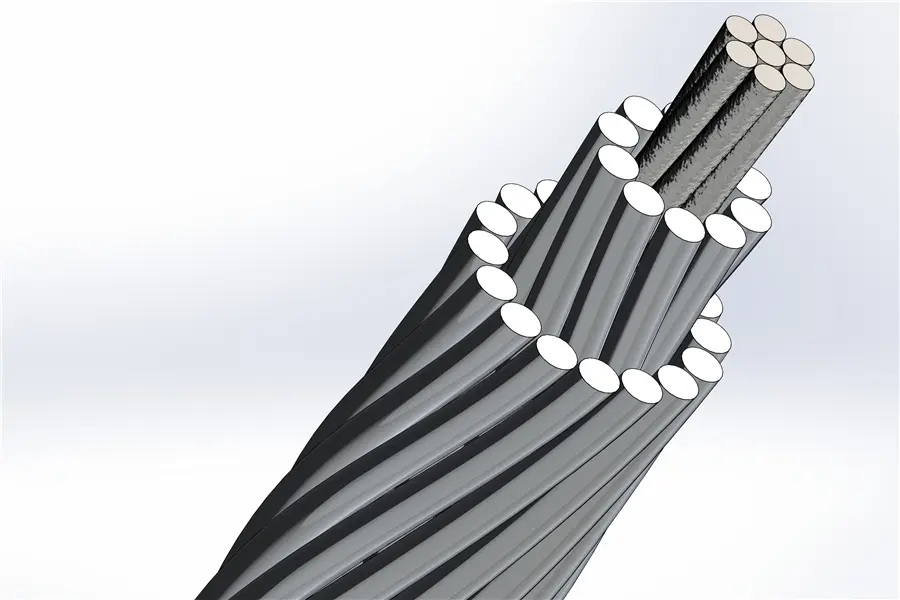

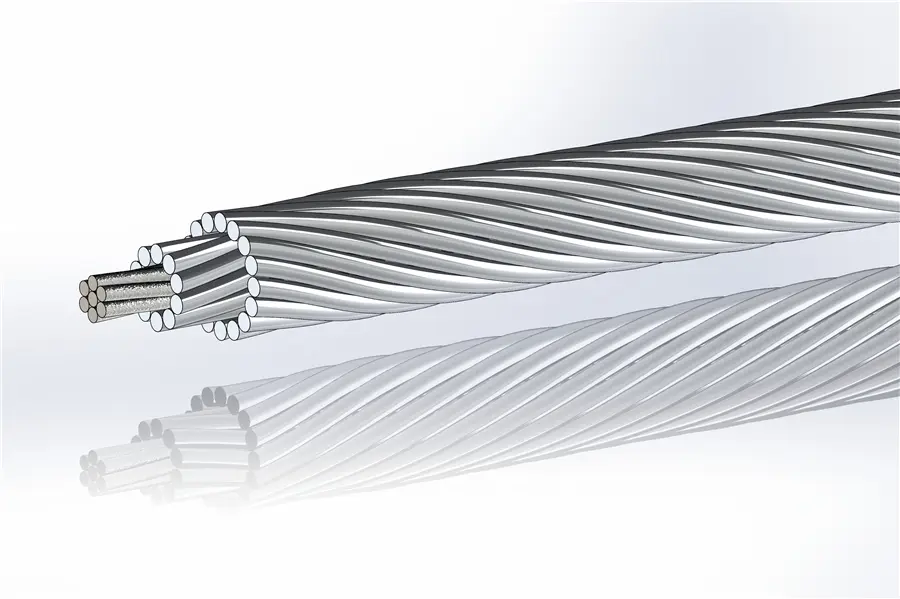

This technical specification covers the requirements for Aluminum Conductor Steel Reinforced (ACSR), categorized under Type: A1/S1A. It is widely utilized for overhead power transmission and distribution lines due to its balanced strength-to-weight ratio.
| Aluminum Conductor Steel Reinforced (ACSR) Specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code Name | Aluminium Wire (Dia. & Stranding) | Galvanized Steel Wire (Dia. & Stranding) | Sectional Area (mm²) | Conductor Diameter (mm) | Nominal Breaking Load (kN) | Linear Mass (kg/km) | Max Resistance at 20℃ (Ω/km) | ||||
| mm | No. | mm | No. | Aluminium | Steel | Total | |||||
| 16 | 1.84 | 6 | 1.84 | 1 | 16.0 | 2.7 | 18.6 | 5.52 | 6.08 | 64.6 | 1.7934 |
| 25 | 2.3 | 6 | 2.3 | 1 | 24.9 | 4.2 | 29.1 | 6.91 | 9.13 | 100.9 | 1.1478 |
| 40 | 2.91 | 6 | 2.91 | 1 | 39.9 | 6.7 | 46.6 | 8.74 | 14.4 | 161.5 | 0.7174 |
| 63 | 3.66 | 6 | 3.66 | 1 | 63.1 | 10.5 | 73.6 | 11 | 21.63 | 254.4 | 0.4555 |
| 100 | 4.61 | 6 | 4.61 | 1 | 100.1 | 16.7 | 116.8 | 13.8 | 34.33 | 403.8 | 0.2869 |
| 125 | 2.97 | 18 | 2.97 | 1 | 124.7 | 6.9 | 131.6 | 14.9 | 29.17 | 397.9 | 0.2304 |
| 125 | 2.47 | 26 | 1.92 | 7 | 124.6 | 20.3 | 144.8 | 15.7 | 45.69 | 503.9 | 0.2310 |
| 160 | 3.36 | 18 | 3.36 | 1 | 159.6 | 8.9 | 168.5 | 16.8 | 36.18 | 509.3 | 0.1800 |
| 160 | 2.80 | 26 | 2.18 | 7 | 160.1 | 26.1 | 186.2 | 17.7 | 57.69 | 644.9 | 0.1805 |
| 200 | 3.76 | 18 | 3.76 | 1 | 199.9 | 11.1 | 211.0 | 18.8 | 42.22 | 636.7 | 0.1440 |
| 200 | 3.13 | 26 | 2.43 | 7 | 200.1 | 32.5 | 232.5 | 19.8 | 70.13 | 806.2 | 0.1444 |
| 250 | 3.80 | 22 | 2.11 | 7 | 249.5 | 24.5 | 274.0 | 21.6 | 68.72 | 880.6 | 0.1154 |
| 250 | 3.50 | 26 | 2.72 | 7 | 250.1 | 40.7 | 290.8 | 22.2 | 87.67 | 1007.7 | 0.1155 |
| 315 | 2.99 | 45 | 1.99 | 7 | 316.0 | 21.8 | 337.7 | 23.9 | 79.03 | 1039.6 | 0.0917 |
| 315 | 3.93 | 26 | 3.05 | 7 | 315.4 | 51.1 | 366.5 | 24.9 | 106.83 | 1269.7 | 0.0917 |
| 400 | 3.36 | 45 | 2.24 | 7 | 399.0 | 27.6 | 426.6 | 26.9 | 98.36 | 1320.1 | 0.0722 |
| 400 | 3.07 | 54 | 3.07 | 7 | 399.7 | 51.8 | 451.5 | 27.6 | 123.04 | 1510.3 | 0.0723 |
| 450 | 3.57 | 45 | 2.38 | 7 | 450.4 | 31.1 | 481.6 | 28.5 | 107.47 | 1485.2 | 0.0642 |
| 450 | 3.26 | 54 | 3.26 | 7 | 450.7 | 58.4 | 509.2 | 29.3 | 138.42 | 1699.1 | 0.0643 |
| 500 | 3.76 | 45 | 2.51 | 7 | 499.7 | 34.6 | 534.3 | 30.1 | 119.41 | 1650.2 | 0.0578 |
| 500 | 3.43 | 54 | 3.43 | 7 | 499.0 | 64.7 | 563.6 | 30.9 | 153.80 | 1887.9 | 0.0578 |
| 560 | 3.98 | 45 | 2.65 | 7 | 559.8 | 38.6 | 598.5 | 31.8 | 133.74 | 1848.2 | 0.0516 |
| 560 | 3.63 | 54 | 2.18 | 19 | 558.9 | 70.9 | 629.8 | 32.7 | 172.59 | 2103.4 | 0.0516 |
| 630 | 4.22 | 45 | 2.81 | 7 | 629.4 | 43.4 | 672.8 | 33.8 | 150.45 | 2079.2 | 0.0459 |
| 630 | 3.85 | 54 | 2.31 | 19 | 628.6 | 79.6 | 708.3 | 34.7 | 191.77 | 2366.3 | 0.0459 |
| 710 | 4.48 | 45 | 2.99 | 7 | 709.3 | 49.2 | 758.5 | 35.9 | 169.56 | 2343.2 | 0.0407 |
| 710 | 4.09 | 54 | 2.45 | 19 | 709.5 | 89.6 | 799.0 | 36.8 | 216.12 | 2666.8 | 0.0407 |
| 800 | 3.76 | 72 | 2.51 | 7 | 799.5 | 34.6 | 834.1 | 37.6 | 167.41 | 2480.2 | 0.0361 |
| 800 | 3.48 | 84 | 3.48 | 7 | 799.0 | 66.6 | 865.5 | 38.3 | 205.33 | 2732.7 | 0.0362 |
| 800 | 4.34 | 54 | 2.61 | 19 | 798.8 | 101.7 | 900.5 | 39.1 | 243.52 | 3004.9 | 0.0362 |
| 900 | 3.99 | 72 | 2.66 | 7 | 900.3 | 38.9 | 939.2 | 39.9 | 188.33 | 2790.2 | 0.0321 |
| 900 | 3.69 | 84 | 3.69 | 7 | 898.3 | 74.9 | 973.2 | 40.6 | 226.50 | 3074.2 | 0.0322 |
| 1000 | 4.21 | 72 | 2.80 | 7 | 1002.3 | 43.1 | 1045.4 | 42.1 | 209.26 | 3100.3 | 0.0289 |
| 1120 | 4.45 | 72 | 1.78 | 19 | 1119.8 | 47.3 | 1167.1 | 44.5 | 234.53 | 3464.9 | 0.0258 |
| 1120 | 4.12 | 84 | 2.47 | 19 | 1119.9 | 91.0 | 1210.9 | 45.3 | 283.17 | 3811.5 | 0.0258 |
| 1250 | 4.35 | 84 | 2.61 | 19 | 1248.4 | 101.7 | 1350.0 | 47.9 | 316.04 | 4253.9 | 0.0232 |
| 1250 | 4.70 | 72 | 1.88 | 19 | 1249.2 | 52.7 | 1301.9 | 47 | 261.75 | 3867.1 | 0.0231 |
