CE Certification Preformed Tension Clamps (SNL) Manufacturer, Suppliers

Utility Model Patent No.: ZL 2012 0507136.3

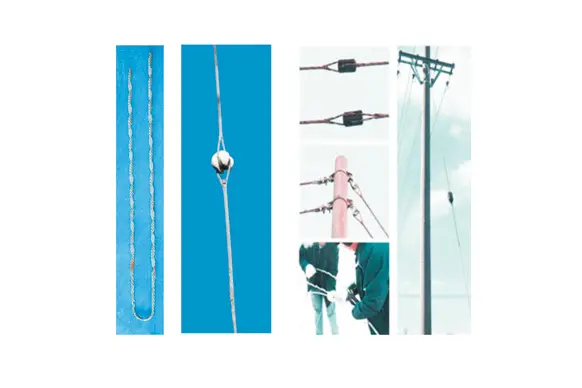

Preformed tension clamps have various types, including preformed conductor tension clamps, preformed ground wire tension clamps, and preformed tension clamps for pull lines. They can replace NY-type, NLL-type, and N-type clamps (commonly used for fixing conductors on poles/towers in China), as well as F-type and NXG-type clamps applied to OPGW.

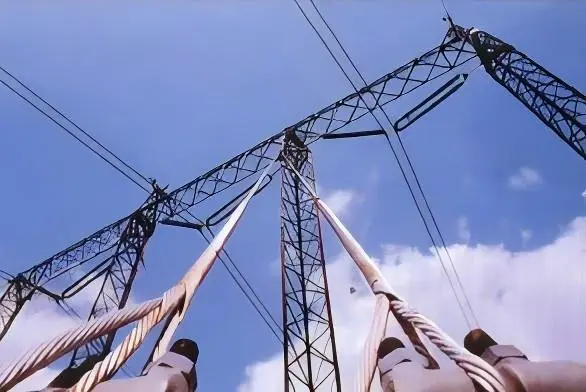

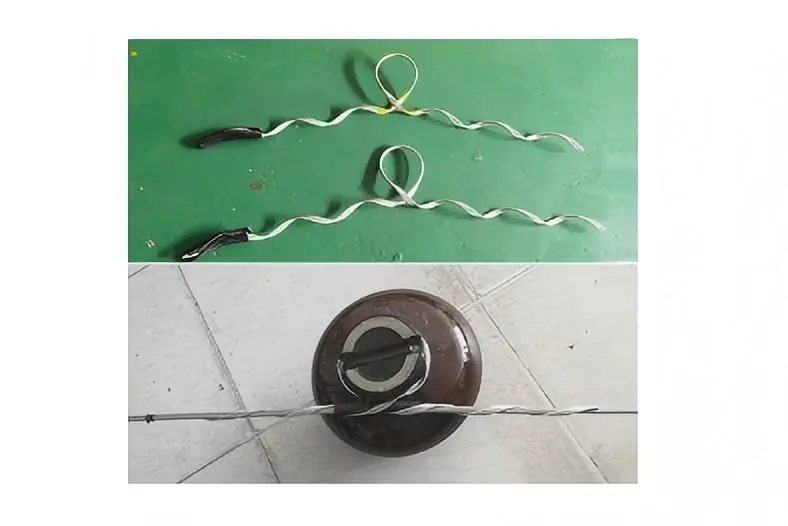

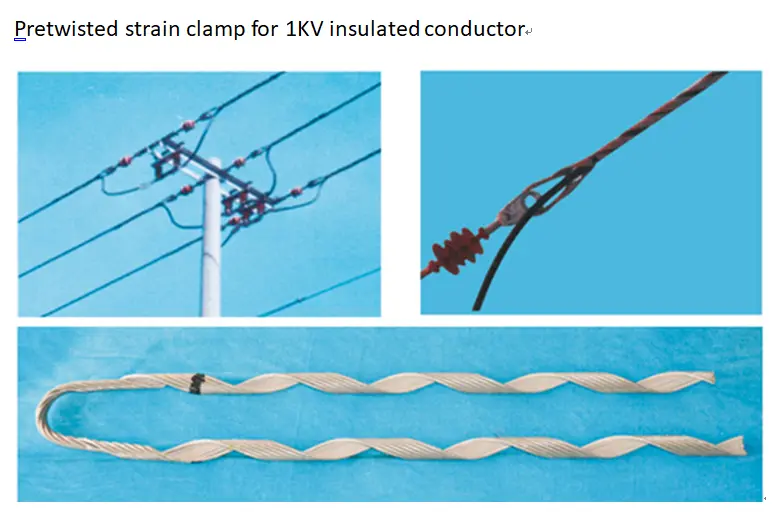

The structure of preformed tension clamps is simple: they form a hollow tube via double-helix twisting, with preformed twist loops at the end. When spirally wound around conductors or ground wires, the clamps generate a gripping force, while the twist loops fasten to insulators, poles, towers, or ground anchors. Their unique principle and structure give them distinctive performance and features.

Send Inquiry

Product Description

Standard Compliance

Manufactured according to GB/T1179-83 and LJ standards.

High Efficiency

Optimized for ACSR and AAC conductor applications.

Multiple Specs

Wide range of sections from 16mm² to 500mm² available.

01 For ACSR Conductor (GB/T1179-83 LGJ/LGJF)

Catalogue Number	Conductors Info	Section (mm²)	O.D (mm)	Length (mm)	Pieces
LNL-16/3	45658	16/3	5.55	444	3
LNL-25/4	45772	25/4	6.86	546	3
LNL-35/6	12936	35/6	8.18	622	3
LNL-50/8	18476	50/8	9.6	685	3
LNL-70/10	25842	70/10	11.4	738	3
LNL-95/15	95/15	95/15	13.61	876	4
LNL-95/20	95/20	95/20	13.87	876	4
LNL-120/7	120/7	120/7	14.5	876	4
LNL-120/20	120/20	120/20	15.07	889	4
LNL-120/25	120/25	120/25	15.74	889	4
LNL-150/8	150/8	150/8	16	889	4
LNL-150/20	150/20	150/20	16.87	1016	5
LNL-150/25	150/28	150/28	17.1	1016	5
LNL-150/35	150/35	150/35	17.6	1016	5
LNL-185/10	185/10	185/10	18	1016	5
LNL-185/25	185/25	185/25	18.88	1155	6
LNL-185/30	185/30	185/30	19.9	1155	6
LNL-185/45	185/45	185/45	19.6	1155	6
LNL-210/10	210/10	210/10	19.6	1155	6
LNL-210/25	210/25	210/25	19.98	1155	6
LNL-210/35	210/35	210/35	20.88	1155	6
LNL-210/50	210/50	210/50	20.38	1155	6
LNL-240/30	240/30	240/30	21.6	1270	8
LNL-240/40	240/40	240/40	21.66	1270	8
LNL-300/15	300/15	300/15	23.04	1270	8
LNL-300/20	300/20	300/20	23.43	1270	8
LNL-300/25	300/25	300/25	23.76	1442	10
LNL-300/40	300/40	300/40	26.94	1442	10
LNL-300/50	300/50	300/50	24.26	1442	10

02 For AAC Conductor (LJ GB/T1179-1983)

Catalogue Number	Section (mm²)	O.D (mm)	Length (mm)	Color Code
LNL-16/LJ	16	4.62-5.16	406	Blue
LNL-25/LJ	25	5.8-6.53	444	Orange
LNL-35/LJ	35	7.35-8.26	622	Red
LNL-50/LJ	50	8.27-9.25	685	Green
LNL-70/LJ	70	10.4-11.28	736	Blue
LNL-95/LJ	95	11.69-13.11	800	Orange
LNL-120/LJ	120	13.12-14.66	876	Red
LNL-150/LJ	150	14.67-16.59	889	Black
LNL-185/LJ	185	16.6-18.77	1016	Green
LNL-210/LJ	210	16.6-18.77	1016	Green
LNL-240/LJ	240	18.78-21.26	1155	Orange
LNL-300/LJ	300	21.27-24.05	1270	Blue
LNL-400/LJ	400	24.06-27.2	1422	Brown
LNL-500/LJ	500	27.21-30.78	1651	Orange

Frequently Asked Questions

What standards do these conductors comply with?

Our ACSR and AAC conductors are manufactured in strict accordance with the GB/T1179-1983 and LGJ/LGJF standards, ensuring high quality and reliability for power transmission.

How do I choose between ACSR and AAC conductors?

ACSR (Aluminum Conductor Steel Reinforced) is typically used for long spans and high-tension requirements due to its steel core, while AAC (All Aluminum Conductor) is preferred for shorter spans and urban areas where high conductivity and corrosion resistance are prioritized.

What does the "Color Code" represent in the AAC table?

The color code is used for quick identification of the conductor specifications and sizes during installation and maintenance in the field.

Are custom lengths available for specific projects?

While the tables list standard catalog lengths, we provide various specifications to match different engineering requirements. Please refer to the O.D and Section values to find the best fit.

What is the significance of the "Pieces" column in the ACSR table?

The "Pieces" column indicates the standard packaging or segment count typically associated with the specific catalogue number for logistical planning.

How is the Outer Diameter (O.D) measured?

The O.D (Outer Diameter) is measured in millimeters (mm) and represents the total thickness of the finished conductor, which is critical for choosing the correct fittings and insulators.
