Custom Preformed Splicing Strips (SJL) Factories, Factory

Types:

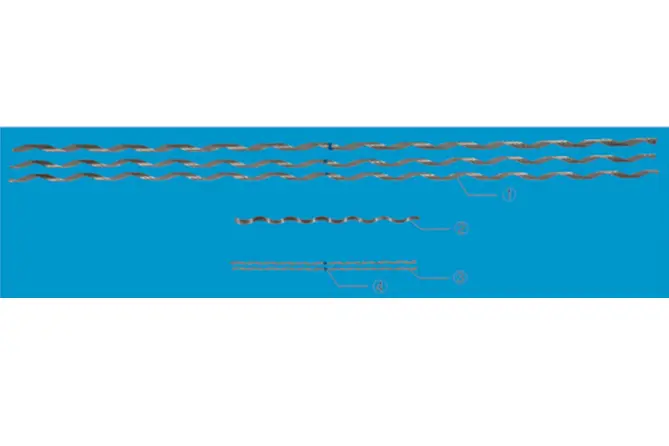

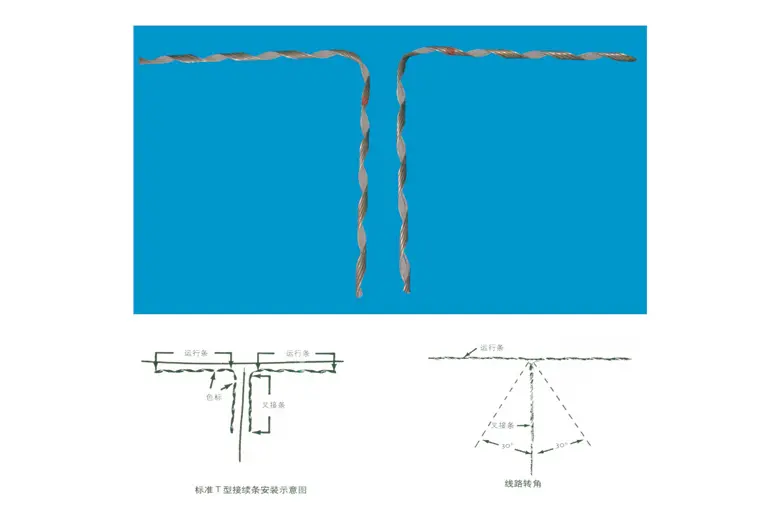

Preformed splicing strips include conductor splicing strips (SJL), jumper splicing strips (SJLT), T-type splicing strips (STJX), full-tension splicing strips for steel-cored aluminum stranded wires (SJLQ), preformed splicing strips for steel strands (used as pulling wires/ground wires, i.e., SJLLX/SJLDX), and splicing strips for reinforcing conductor splicing sleeves (SJLGB), etc. Among all these splicing strips, except the full-tension splicing strips for steel-cored aluminum stranded wires (which consist of three layers: inner steel core splicing strip, filling strip, and outer splicing strip), the rest are all single-layer preformed wires.

Send Inquiry

Product Description

⚡

Preformed Armor Rods for Aluminum Conductor Steel Reinforced (ACSR) (SBL)

Product Model	Standard Model	Applicable Conductor	Outer Diameter (mm)	Clamp Length (mm)	Single Wire Dia (mm)	Weight (kg)	Color Code
Product Model	Standard Model	(GB/T 1179-83/2017)	Outer Diameter (mm)	Clamp Length (mm)	Single Wire Dia (mm)	Weight (kg)	Color Code
HL-35/6	HL-35/6	Jun-35	8.16	1100	3	0.22	Red
HL-50/8	HL-50/8	Aug-50	8.16	1270	3	0.3	Red
HL-95/15	HL-95/15	95/15	13.41	1270	3.6	0.3	Yellow
HL-95/20	HL-95/20	95/20	13.67	1400	3.6	0.55	Yellow
HL-95/55	HL-95/55	95/55	16.8	1500	3.6	0.7	Red
HL-120/7	HL-120/7	120/7	14.4	-	-	0.58	White
HL-120/20	HL-120/20	120/20	15.07	1400	3.6	0.63	Brown
HL-150/8	HL-150/8	150/8	16	1800	4.6	0.75	Brown
HL-240/08	HL-240/08	240/08	21.46	1900	4.6	1.53	Blue
HL-300/15	HL-300/15	300/15	23.01	2000	6.3	2.26	Black
HL-400/95	HL-400/95	400/95	28	2500	6.3	3.77	Brown
HL-630/45	HL-630/45	630/45	33.6	2500	7.8	5.1	Purple
HL-800/100	HL-800/100	800/100	38.98	2500	7.8	12.28	Blue

🛠️

Preformed Armor Rods for Aluminum Stranded Wire Connection

Product Model	Standard Model	Conductor Diameter (mm)		Standard Type	Reference Length (mm)	Weight (kg)	Color Code
Product Model	Standard Model	Min	Max	Standard Type	Reference Length (mm)	Weight (kg)	Color Code
JLD - 16L		4.91	5.13	16	558	0.08	Blue
JLD - 70L		10.22	10.8	70	1020	0.32	Brown
JLD - 120L	JL - 120LJ	13.83	14.4	120	1321	0.6	Red
JLD - 240L	JL - 240LJ	19.91	20.12	240	2108	2.18	Purple
JLD - 500L	JL - 500LJ	27.71	30.05	500	3451	6.5	Red

Note: J - Armor rod; L - Spiral preformed armor rod; D - Wire; LJ - Aluminum stranded wire.

🔧

Preformed Armor Rods for ACSR Wire Repair

Product Model	Conductor Type (LGJ, LGJF)		Reference Length (mm)	Wire Dia (mm)	Weight (Kg)	Color Code
Product Model	Model	Outer Diameter	Reference Length (mm)	Wire Dia (mm)	Weight (Kg)	Color Code
BL - 70/10	Oct-70	11.4	420	3.6	0.14	Red
BL - 150/25	150/25	17.1	480		0.24	Blue
BL - 300/15	300/15	23.4	650	6.3	1.22	Green
BL - 630/45	630/45	33.4	1500		2.62	Yellow - green

🏗️

Preformed Armor Rods for Ground Wire Splicing Sleeves

Product Model	Conductor Diameter (mm)		Conductor Type (GJ)	Splicing Sleeve	Max Sleeve Length (mm)	Ref Length (mm)	Weight (Kg)
JLB - 35G	7.4	8	35	JY - 35G	300	1790	0.75
JLB - 70G	10.5	11.1	70	JY - 70G	290	2400	2.1
JLB - 120G	14	14.7	120		640	3520	5.4

💎

Full-Tension Splice Kits (SJLD) Selection

Product Model No.	Applicable Conductor Type	Reference Splice Length (mm)			Splice Weight (kg)
Product Model No.	Applicable Conductor Type	Steel Core	Filler	Outer Layer	Steel Core	Filler	Outer Layer
LQ-50/8	LGJ-50/8	608	-	1727	0.15	0.35	-
LQ-95/55	LGJ-95/55	777	710	2560	0.65	0.1	0.99
LQ-240/30	LGJ-240/30	817	838	3673	0.54	0.33	3.45
LQ-400/95	LGJ-400/95	3619	1219	4216	0.84	0.77	9.21

Key: J=Splice strip, L=Spiral preformed type, Q=Full-tension.

❓

Frequently Asked Questions

What is the primary purpose of Preformed Armor Rods?

They are designed to protect conductors against bending, compression, abrasion, and arc-over, while also providing structural reinforcement for repair or connection.

How do I choose the correct model based on color codes?

Color codes are installation marks used to distinguish product models and guide the assembly center point for easier and more accurate installation.

Are these rods compatible with all ACSR conductors?

We offer specific models for various ACSR (Aluminum Conductor Steel Reinforced) specifications. Please refer to the "Applicable Conductor Model" column in our selection tables.

Can preformed rods be used for repair of damaged wires?

Yes, specific "Repair" models (like the BL series) are engineered to restore the electrical and mechanical integrity of conductors with minor damage.

What are Full-Tension Splice Kits used for?

Full-tension splice kits (SJLD) are designed as independent external connection components for high-voltage lines (typically < 345 kV) to ensure maximum grip and conductivity.

What materials are the splicing strips made of?

They are generally composed of sets of preformed wires with sandblasted inner surfaces to enhance friction and connection stability.
