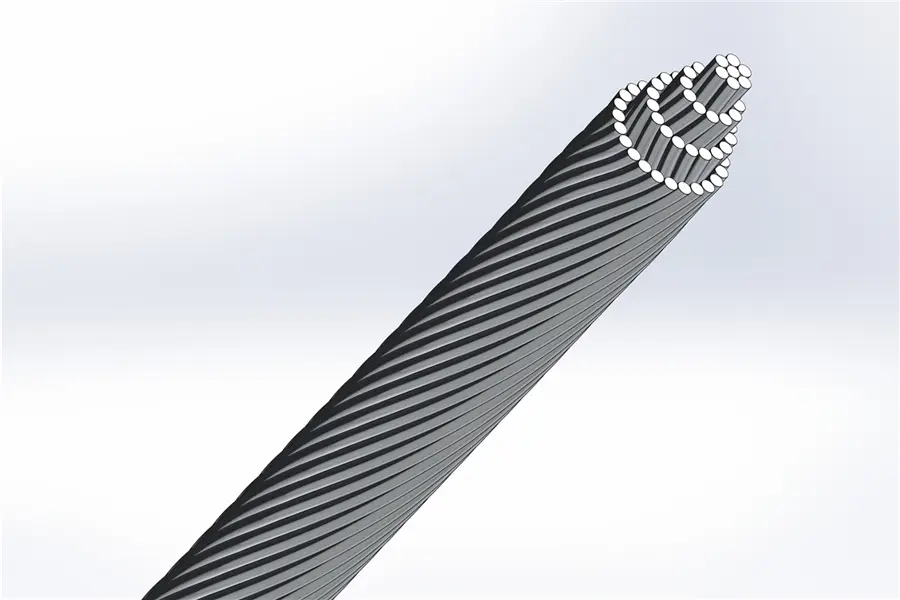

China AAC IEC 61089 All-aluminum Conductor Suppliers, Factory

Execution standard: IEC 61089

Material: AAC adopts AL1 aluminum Â material.

Product application: AAC aluminum stranded conductors excel in electrical conductivity, ensuring efficient power transmission with minimal energy lossâ€”making them a reliable choice for medium and low-voltage distribution networks.

AACÂ (All-AluminumÂ Conductor)Â isÂ aÂ streamlinedÂ powerÂ transmissionÂ option,Â constructedÂ fromÂ high-gradeÂ aluminumÂ toÂ prioritizeÂ electricalÂ conductivity.Â ItsÂ all-aluminumÂ buildÂ eliminatesÂ extraÂ weightÂ fromÂ steelÂ cores,Â makingÂ itÂ idealÂ forÂ short-span,Â low-tensionÂ overheadÂ linesâ€”perfectÂ forÂ urbanÂ subnetworksÂ orÂ ruralÂ feederÂ linesÂ whereÂ cost-effectivenessÂ andÂ easyÂ maintenanceÂ areÂ keyÂ priorities.

Send Inquiry

Product Description

AAC Standard: IEC 61089

Aluminum Stranded Conductor (AAC)
Code Name	Sectional Area	Wire Diameter & Stranding		Diameter of Conductor	Nominal Breaking Load	Linear Mass	Maximum Resistance at 20℃
Code Name	mm²	mm	No.	mm	kN	kg/km	Ω/km
10	10.0	1.35	7	4.05	1.95	27.4	2.8633
16	16.1	1.71	7	5.13	3.04	44.0	1.7896
25	24.9	2.13	7	6.39	4.5	68.3	1.1453
40	40.1	2.7	7	8.1	6.8	109.8	0.7158
63	63.2	3.39	7	10.17	10.39	173.0	0.4545
100	100.1	2.59	19	12.95	17	275.4	0.2877
125	124.6	2.89	19	14.45	21.25	343.0	0.2302
160	159.6	3.27	19	16.35	26.4	439.1	0.1798
200	199.9	3.66	19	18.3	32	550.0	0.1439
250	249.6	4.09	19	20.45	40	686.9	0.1151
315	314.5	3.29	37	23.03	51.97	867.6	0.0916
400	400.0	3.71	37	25.97	64	1103.2	0.0721
450	451.1	3.94	37	27.58	72	1244.2	0.0641
500	500.5	4.15	37	29.05	80	1380.4	0.0577
560	560.0	4.39	37	39.51	89.6	1544.7	0.0515
630	631.3	3.63	61	32.67	100.8	1743.6	0.0458
710	710.1	3.85	61	34.65	113.6	1961.3	0.0407
800	801.4	4.09	61	36.81	128	2213.5	0.0361
900	898.2	4.33	61	47.63	144	2480.9	0.0321
1000	1000.6	4.57	61	50.27	160	2763.5	0.0289
1120	1120.8	3.96	91	43.56	179.2	3110.1	0.0258
1250	1248.8	4.18	91	45.98	200	3465.2	0.0231
1400	1402.6	4.43	91	48.73	224	3892.1	0.0207
1499.2	1499.2	4.58	91	50.38	240	4160.2	0.0193

Note: The outermost layer is twisted to the right (Z).

Frequently Asked Questions

What is the standard compliance for AAC conductors?

These AAC (All Aluminum Conductor) products are manufactured and tested in accordance with the IEC 61089 international standard, ensuring high quality and reliability for overhead power transmission.

What are the advantages of using Type A1 AAC?

Type A1 aluminum conductors offer an excellent strength-to-weight ratio, high conductivity, and superior corrosion resistance, making them ideal for urban and coastal power distribution.

What does the "Z" twist direction signify?

The "Z" twist indicates that the outermost layer of the stranded aluminum wires is twisted to the right. This is a standard engineering specification for conductor stability and compatibility with fittings.

How is the maximum resistance calculated?

The maximum resistance is measured at a reference temperature of 20°C. It determines the electrical efficiency of the conductor; lower resistance leads to lower energy losses during transmission.

Why is Nominal Breaking Load (kN) important?

The Nominal Breaking Load indicates the maximum tensile force the conductor can withstand before failure, which is critical for calculating safety factors in line tension and sag designs.

Can AAC conductors be used for long-span transmission?

AAC is primarily used for relatively short spans in distribution lines. For very long spans requiring higher mechanical tension, conductors like ACSR (Aluminum Conductor Steel Reinforced) are typically preferred.
