China 0.6/1kv Aerial Bundled Conductor Systems(Executive Standard: NF C33-209) Manufacturer, Suppliers

Standards: NF C 33-209

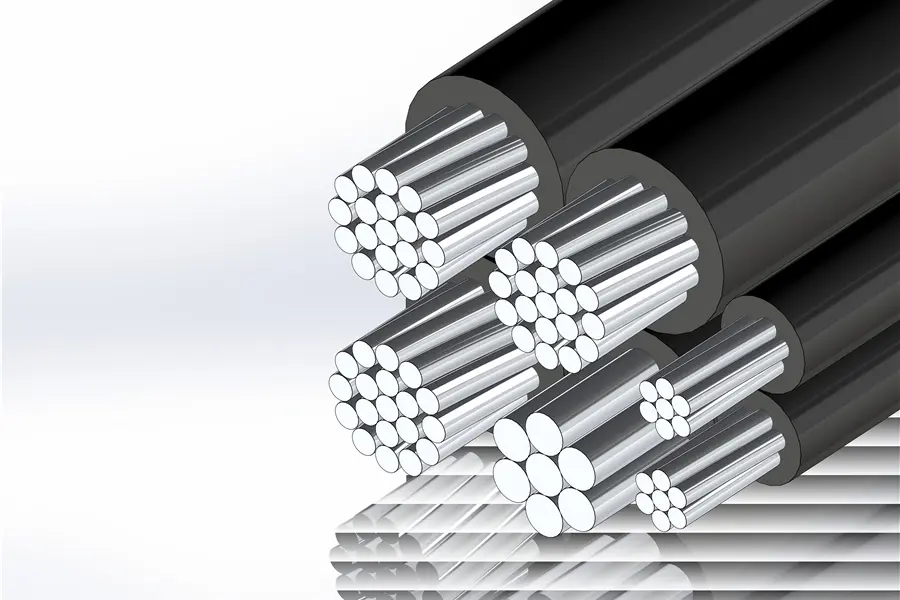

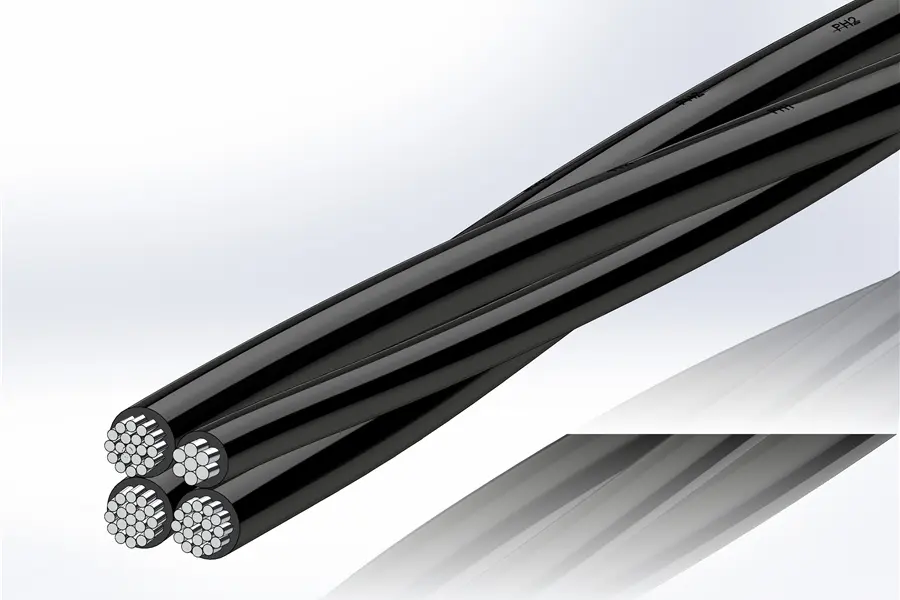

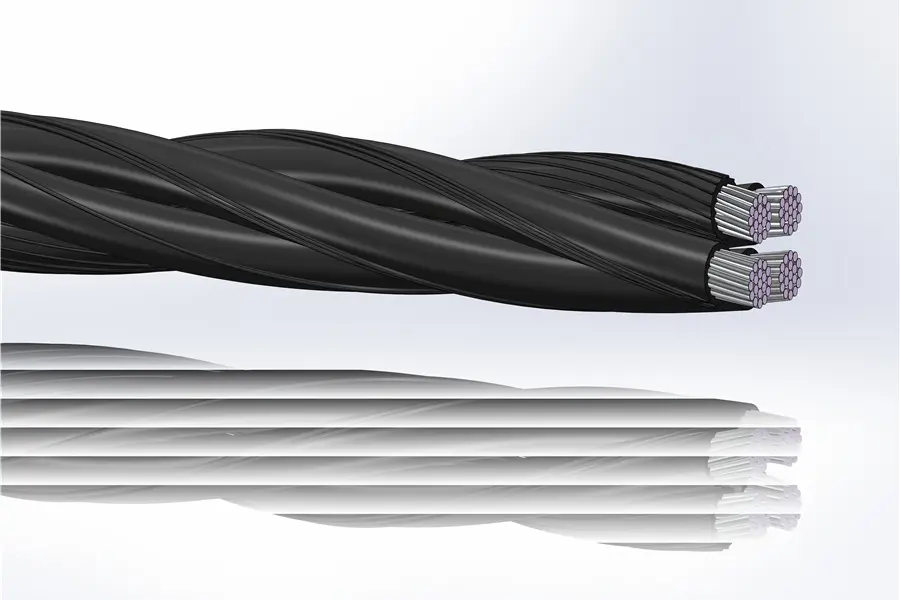

CONSTRUCTION
Phase Conductor: Circular stranded, compact aluminum conductor optimized for efficient power transmission and mechanical strength.
Neutral/Messenger Conductor: Stranded or compacted aluminum alloy conductor (AAAC), designed to withstand mechanical stresses and ensure electrical reliability.
Street Lighting Conductor: Optional, providing additional functionality for street lighting applications in urban and rural areas.
Insulation: Black crosslinked polyethylene (XLPE), meeting NF C 33-209 standards for electrical insulation and protection against environmental factors

Send Inquiry

Product Description

Aerial Bundled Cable NF C 33 209

Model specification	Phase Core					Neutral Core					Complete Cable
	No.& Section Area	No.of wire	Dia.of Conductor		Insulation Thickness	No.& Section Area	No.of wire	Dia.of Conductor		Insulation Thickness	Overall Diameter (Approx.)	Weight (Approx.)
	No.& Section Area	No.of wire	MIN	MAX	Insulation Thickness	No.& Section Area	No.of wire	MIN	MAX	Insulation Thickness	Overall Diameter (Approx.)	Weight (Approx.)
ABC 2X16	1X16	7	4.6	5.1	1.2	1X16	7	4.6	5.1	1.2	14.2	127
ABC 4X16	3X16	7	4.6	5.1	1.2	1X16	7	4.6	5.1	1.2	17.1	253
ABC 2X25	1x25	7	5.8	6.3	1.4	1x25	7	5.8	6.3	1.4	17.2	193
ABC 4X25	3x25	7	5.8	6.3	1.4	1x25	7	5.8	6.3	1.4	20.8	387
ABC 2X35	1x35	7	6.8	7.3	1.6	1x35	7	6.8	7.3	1.6	20.2	263
ABC 4X35	3x35	7	6.8	7.3	1.6	1x35	7	6.8	7.3	1.6	24.4	527
ABC 2X50	1x50	7	7.9	8.4	1.6	1x50	7	7.9	8.4	1.6	21.8	338

Core number and nominal cross-sectional area(mm2)	Resistance at 20 °C Ω/km Max.	Continuous amapcity (A)	Voltage drop cos φ=0.8 ( V/A/km )	Length for container loading (m/drum)	N.W. kg/drum	G.W. kg/drum	Volume m³/drum
ABC 2×16	1.91	93	3.98	5000	635	740	1.46
ABC 4×16	1.91	83	3.44	2500	633	738	1.46
ABC 2×25	1.2	122	2.54	3400	656	761	1.46
ABC 4×25	1.2	111	2.2	1700	658	763	1.46
ABC 2×35	0.868	138	1.65	2400	631	736	1.46
ABC 4×35	0.868	138	1.65	1200	632	737	1.46
ABC 2×50	0.641	168	1.27	2000	676	781	1.46

Note: Size of the wooden drum: 1140*1120

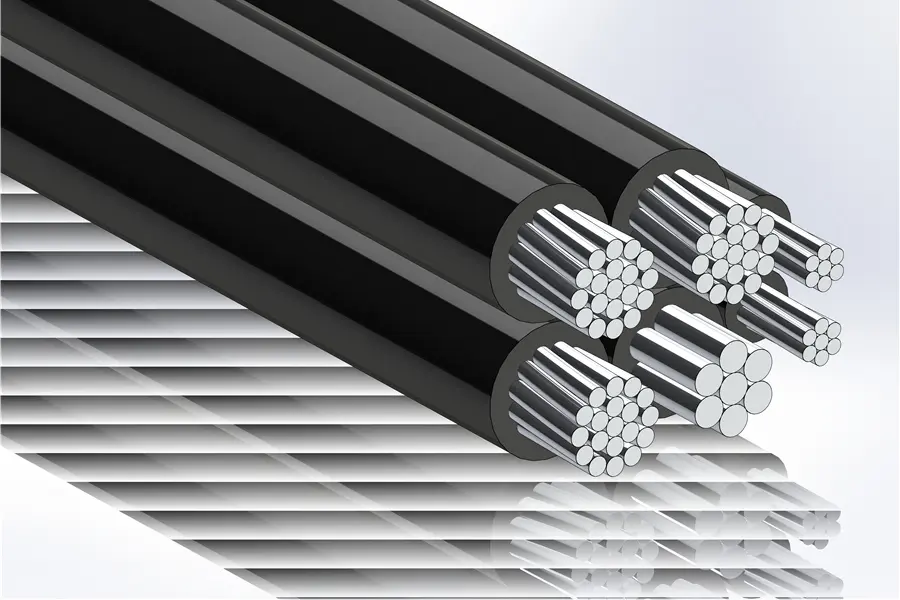

Bundles with Supporting Cores

Model specification	Phase Core					Neutral Core					Complete Cable
	No.& Section Area	No.of wire	Dia.of Conductor		Insulation Thickness	No.& Section Area	No.of wire	Dia.of Conductor		Insulation Thickness	Overall Diameter	Weight
	No.& Section Area	No.of wire	MIN	MAX	Insulation Thickness	No.& Section Area	No.of wire	MIN	MAX	Insulation Thickness	Overall Diameter	Weight
ABC 3X25+54.6	3x25	7	5.8	6.3	1.4	AAAC 54.6	7/3.15	9.45		1.6	23.2	491
ABC 3X35+54.6	3x35	7	6.8	7.3	1.6	AAAC 54.6	7/3.15	9.45		1.6	26	596
ABC 3X50+54.6	3x50	7	7.9	8.4	1.6	AAAC 54.6	7/3.15	9.45		1.6	27.7	708
ABC 3X70+54.6	3x70	19	9.7	10.2	1.8	AAAC 54.6	7/3.15	9.45		1.6	31.9	937
ABC 3X120+70	3x120	19	12.5	13.5	1.8	AAAC 70	7/3.50	10.5		1.6	38	1438
ABC 3X150+95	3x150	19	13.9	15	1.8	AAAC 95	19/2.56	12.8		1.6	42.4	1780

Core number and nominal cross-sectional area(mm2)	Resistance at 20 °C Max.	Continuous amapcity (A)	Voltage drop ( V/A/km )	Length for container loading (m/drum)	N.W. kg/drum	G.W. kg/drum
ABC 3X25+54.6	1.2	112	2.2	1300	638	743
ABC 3X95+54.6	0.32	258	0.67	2000	2348	2628
ABC 3X150+95	0.206	344	0.46	1300	2314	2594

Note: Size of wooden drum: 1140*1120; Ironwood drum: 2200*1120

Model specification	Phase Core					Neutral Core					Complete Cable
	No.& Section Area	No.of wire	Dia.of Conductor		Insulation Thickness	No.& Section Area	No.of wire	Dia.of Conductor		Insulation Thickness	Overall Diameter	Weight
	ABC 3X25+54.6+kx16	3x25	7	5.8	6.3	1.4	AAAC 54.6	7/3.15	9.45		1.6	/	/
ABC 3X70+54.6+kx25	3x70	19	9.7	10.2	1.8	AAAC 54.6	7/3.15	9.45		1.6	/	/
ABC 3X150+95+kx16	3x150	19	13.9	15	1.8	AAAC 70	7/3.50	10.5		1.6	/	/

Lighting cores: Users can add one or two lighting wires (16MM2 or 25MM2) to the product structure according to needs.

Frequently Asked Questions (FAQ)

What is the NF C 33 209 standard for ABC cables?

The NF C 33 209 is a French standard that specifies the requirements for insulated cables for overhead distribution systems, specifically focusing on bundled conductors for rated voltages up to 1kV.

Can lighting cores be integrated into the cable structure?

Yes, users can add one or two lighting wires (typically 16mm² or 25mm²) to the bundled cable structure depending on specific project requirements.

What materials are used for the supporting neutral core?

The neutral messenger core is typically made from AAAC (All Aluminum Alloy Conductor), providing the necessary tensile strength to support the cable weight in overhead spans.

How is the cable packaged for international shipping?

Cables are usually packed in wooden drums (standard size 1140*1120mm) or ironwood drums (standard size 2200*1120mm) to ensure stability during container loading.

What is the maximum resistance measured at?

The conductor resistance is measured and specified at a standard temperature of 20°C to ensure consistent electrical performance across different specifications.

Are these cables suitable for mobile-access infrastructure?

Yes, Aerial Bundled Cables are designed for versatility in overhead power distribution, offering high reliability and safety in both urban and rural environments.
