CE Certification SPLN40-10 NFA2X-T Manufacturers, Supplier

Standards: SPLN 40-10

Feature: These low voltage cables are applied for low voltage network and service entrance cable on the customer. Â Â

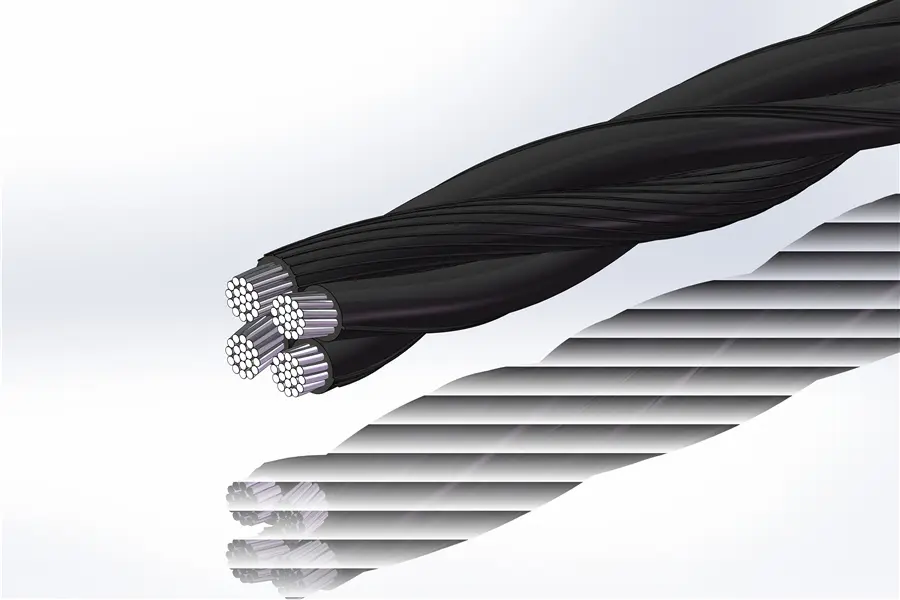

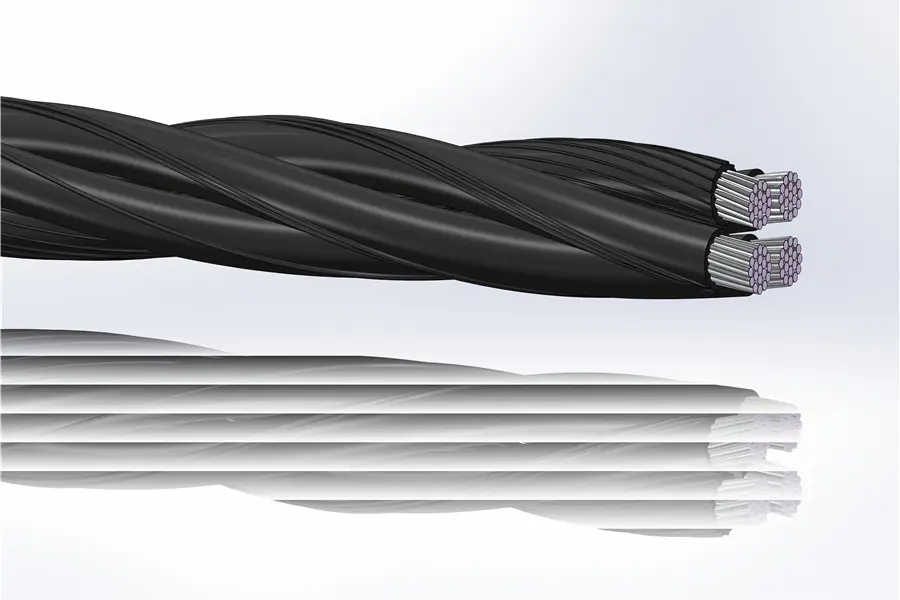

ABC cable is a user-friendly aerial power solution, featuring bundled insulated conductors that reduce the chance of accidents and power outages. Â Lightweight yet sturdy, itâ€™s easy to install and maintain, suitable for areas with frequent tree contact or high pedestrian activity, ensuring steady power flow.

Send Inquiry

Product Description

Model Specification: NFA2X Series

Model specification	Phase Core					Neutral Core					Street lamp wire					Complete Cable
	No.& Section Area	No.of wire	Dia.of Conductor		Insulation Thickness	No.& Section Area	No.of wire	Dia.of Conductor		Insulation Thickness	No.& Section Area	No.of wire	Dia.of Conductor		Insulation Thickness	Overall Diameter (Approx.)	Weight (Approx.)
	No.& Section Area	No.of wire	MIN	MAX	Insulation Thickness	No.& Section Area	No.of wire	MIN	MAX	Insulation Thickness	No.& Section Area	No.of wire	MIN	MAX	Insulation Thickness	Overall Diameter (Approx.)	Weight (Approx.)
Two-cores
NFA2X 2X10	1X10	7	3.8	4.05	1.2	1X10	7	3.8	4.05	1.2	-	-	-	-	-	12.6	91
NFA2X 2X16	1X16	7	4.6	5.1	1.2	1X16	7	3.8	4.05	1.2	-	-	-	-	-	14.2	127
Four-core
NFA2X 4X10	3X10	7	4.6	5.1	1.2	1X10	7	3.8	4.05	1.2	-	-	-	-	-	15.2	182
NFA2X 4X16	3X16	7	4.6	5.1	1.2	1X16	7	4.6	5.1	1.2	-	-	-	-	-	17.1	253
NFA2X 4X25	3x25	7	5.6	6.5	1.4	1x25	7	5.6	6.5	1.4	-	-	-	-	-	20.8	387
NFA2X 4X35	3x35	7	6.6	7.5	1.6	1x35	7	6.6	7.5	1.6	-	-	-	-	-	24.4	527

✓

Size and Construction of Aerial Twist Cable (SPLN 42-10)

Ukuran dan konstruksi Kabel Pilin Udara dengan netral sebagai penggantung

Aerial Bundled Cable SPLN 42-10 (Three & Four Core)
Model specification	Phase Core					Neutral Core					Street lamp wire					Complete Cable
	No.& Section Area	No.of wire	Dia.of Conductor		Insulation Thickness	No.& Section Area	No.of wire	Dia.of Conductor		Insulation Thickness	No.& Section Area	No.of wire	Dia.of Conductor		Insulation Thickness	Overall Diameter (Approx.)	Weight (Approx.)
	No.& Section Area	No.of wire	MIN	MAX	Insulation Thickness	No.& Section Area	No.of wire	MIN	MAX	Insulation Thickness	No.& Section Area	No.of wire	MIN	MAX	Insulation Thickness	Overall Diameter (Approx.)	Weight (Approx.)
Three-core
NFA2X-T 2X25+25	2x25	7	5.6	6.5	1.4	AAAC 25	7/2.13	6.39		1.4	-	-	-	-	-	19	293
NFA2X-T 2X35+25	2x35	7	6.6	7.5	1.6	AAAC 25	7/2.13	6.39		1.4	-	-	-	-	-	21.1	364
NFA2X-T 2X50+35	2x50	7	7.7	8.5	1.6	AAAC 35	7/2.52	7.56		1.6	-	-	-	-	-	23.7	478
Four-core
NFA2X-T 3X25+25	3x25	19	5.6	6.5	1.4	AAAC 25	7/2.13	6.39		1.4	-	-	-	-	-	21.1	389
NFA2X-T 3X70+50	3x70	19	9.3	10.2	1.8	AAAC 50	7/3.02	9.06		1.6	-	-	-	-	-	31.7	923

Aerial Bundled Cable SPLN 42-10 (Five & Six Core)
Model specification	Phase Core					Neutral Core					Street lamp wire					Complete Cable
	No.& Section Area	No.of wire	Dia.of Conductor		Insulation Thickness	No.& Section Area	No.of wire	Dia.of Conductor		Insulation Thickness	No.& Section Area	No.of wire	Dia.of Conductor		Insulation Thickness	Overall Diameter (Approx.)	Weight (Approx.)
	No.& Section Area	No.of wire	MIN	MAX	Insulation Thickness	No.& Section Area	No.of wire	MIN	MAX	Insulation Thickness	No.& Section Area	No.of wire	MIN	MAX	Insulation Thickness	Overall Diameter (Approx.)	Weight (Approx.)
Five-core
NFA2X-T 3X25+25+16	3x25	19	5.6	6.5	1.4	AAAC 25	7/2.13	6.39		1.4	16	7	4.6	5.1	1.2	16.7	452
NFA2X-T 3X95+70+16	3x95	19	11	12	2.0	AAAC 70	19/2.17	10.85		1.8	16	7	4.6	5.1	1.2	28.3	1326
Six-cores
NFA2X-T 3X25+25+2x16	3x25	19	5.6	6.5	1.4	AAAC 25	7/2.13	6.39		1.4	16	7	4.6	5.1	1.2	19	515
NFA2X-T 3X95+70+2x16	3x95	19	11	12	2.0	AAAC 70	19/2.17	10.85		1.8	16	7	4.6	5.1	1.2	30	1389

Frequently Asked Questions

What is the application of NFA2X Aerial Twist Cable?

NFA2X cables are primarily used for overhead power distribution lines. They are designed for aerial installation with neutral conductors acting as supports in some configurations.

What does the SPLN 42-10 standard represent?

SPLN 42-10 is a specific technical standard for Aerial Bundled Cables (ABC), ensuring the quality, safety, and construction parameters of the twist cables used in power networks.

Can these cables support street lighting?

Yes, as shown in the technical specifications, certain models like the Five-core and Six-core versions include dedicated street lamp wires for integrated public lighting systems.

What materials are used for the conductors and insulation?

The phase cores typically use aluminum conductors, while the neutral core may use AAAC (All Aluminum Alloy Conductor). The insulation is generally made of cross-linked polyethylene (XLPE) for high thermal resistance.

How many cores are available in the NFA2X range?

The NFA2X series offers a variety of configurations including Two-core, Three-core, Four-core, and extended versions with five or six cores to meet different distribution needs.

What is the difference between NFA2X and NFA2X-T?

The "T" typically indicates a construction where the neutral messenger wire is designed to bear the mechanical tension of the bundle during aerial suspension.
